KUBOTA M704KQ TRACTOR

　Reading times：[50]　Category：M704-K(Q)

PRODUCT PICTURES

PRODUCT PARAMETER

	KUBOTA-M704KQ
整机complete machine	结构型式			-	四轮驱动（4×4）four-wheel drive
	外形尺寸Dimensions	长（至前配重）Length (front counterweight)		mm	4110
		宽（带后配重）Width (with post weight)		mm	1950
			驾驶室型式Cab type	mm	2560（至驾驶室顶）
	轮距Tread	前轮Front wheel		mm	1520
		后轮Rear wheel		mm	1520、1620、1720
	轴距Wheelbase			mm	2150

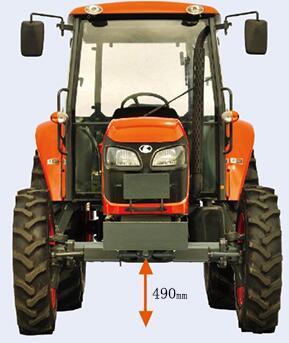

	最小离地间隙Minimum ground clearance			mm	490（At the bottom of the front axle）
	最小使用质量Minimum use of mass			kg	2620
	转向圆半径Turn round radius	不单边制动No side brake		m	4.2
		单边制动Unilateral brake			3.2
	档位数Number of stalls			-	8F+8R（2×4）
	动力输出轴功率Power output shaft power			kW	45.6

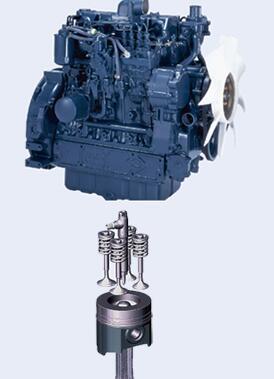

发动机Engine	型号Model			-	V3800-DI-ES04/V3800-DI-ES05
	型式Type			-	立式水冷4缸柴油机
	气缸数Number of cylinders				4
	标定转速Calibration speed			r/min	2500
	标定功率（12h）Calibration power (12h)			kW	53.6
	蓄电池规格Battery specifications			-	12V，RC：160min，CCA 900A
	燃油箱容积Fuel tank volume			L	85
行走转向制动系Walking steering brake system	轮胎规格Tire Specifications	前轮Front Wheel		-	9.5-24
		后轮Rear wheel		-	16.9-30
	转向系型式Steering type			-	独立油路，全液压前轮转向Independent oil, full hydraulic front wheel steering
	行驶制动器Driving brakes			-	机械式、湿式、盘式Mechanical, wet, disc type
	停车制动器Parking brake			-	踏板锁定式、手柄式Pedal lock type, handle type
传动系Transmission system	离合器型式Clutch type			-	单作用、干式、单盘Single acting, dry, single plate
工作装置Working equipment	悬挂装置类别Suspension Type			-	Ⅱ类
	框架上610mm处最大提升力The maximum lifting force at 610 mm on the frame			kN	12.9
	牵引装置型式Traction device type			-	托架式（高度可调）Bracket type (height adjustable) / traction rod type (optional)
动力输出Power output	型式Type			-	独立式，8花键Independence, 8 splines
	转速Speed			r/min	540/720
选装件Option	液压输出阀Hydraulic output valve			-	第2组Group 2
	水田用高花胎High flower of paddy field			-	8.3-24/14.9-30

MORE PRODUCTS

PACKAGING & SHIPPING


packaging	genuine packaging
	according to customers' request
	nude packaging
	standard export pacakging
shipping	by express	DHL, FEDEX, UPS, TNT, ect.
	by air	China main port
	by sea	China main port
payment	TT, western union, credit card, Alibaba trade assurance, ect.

OUR ADVANTAGES

SHUNYU supply New and Used Old Kubota M704 M7040 M954 M9540 Tractors and all related spare parts.We can not put all of our machines here, if you have any needs, welcome to send us inquiry, and we will find for you.


FAQ

1. What's the MOQ?

MOQ is 1 set. but for your reference, one 40HQ can load 2 sets, that will save you a lot of sea freight.

2. What's the after sales?

Our products' warranty is for 12 months. after that, we can still supply technical support and original spare parts.

3. What's your lead time?

usually within 20 work days.

4. Are you interested in dealership with local company?

Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.

5. What's your Payment terms?

30% payment in advance by TT, 70% balance before delivery.
