M954K

 Reading times:[40] Category:M954-K(Q)


TYPEUnitKUBOTA-M954K
 Structure    type  4    wheel drive (4 × 4)
DimensionsLength    (front counterweight) mm4445
 Width    (with post weight)mm2215
 Safe frame typemm2620
TreadFront    wheel mm1660         1760
 Rear    wheelmm1600     1720   1800    1920
Wheelbasemm2350
Minimum ground clearancemm 500[Bracket    (suspension mechanism)]
Minimum use of masskg3045
Turn round radiusNo    side brakem4.5
 Unilateral    brakem3.5
Number of stalls   12F +    12R (2 × 6)
Power output shaft power  kW60.2

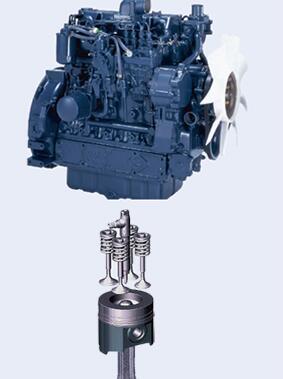

EngineModel V3800-DI-T-ET20
Type Vertical    water cooled 4 - cylinder turbocharged diesel engine
Number of cylinders 4
Calibration speed r/min2600
Calibration power (12h)kW70.8
Battery specifications 12V,RC:160min,CCA    900A
 Fuel    tank volumeL105
Walking steering brake systemTire    SpecificationsFront    Wheel  12.4-24
Rear wheel 16.9-34
Steering type Independent    oil, full hydraulic front wheel steering
Driving brakes Mechanical,    wet, disc type
Parking brake Pedal    lock type, handle type
Transmission systemClutch    type Single    acting, dry, single plate
Working equipmentSuspension    Type
 The    maximum lifting force at 610 mm on the frameKn18
 Traction    device type Bracket    type (height adjustable) / traction rod type (optional)
Power outputType Independence,    8 splines
 Speedr    / min540/720
OptionHydraulic    output valve Group    2,Group 3
 High    flower of paddy field 9.5-24/16.9-30
